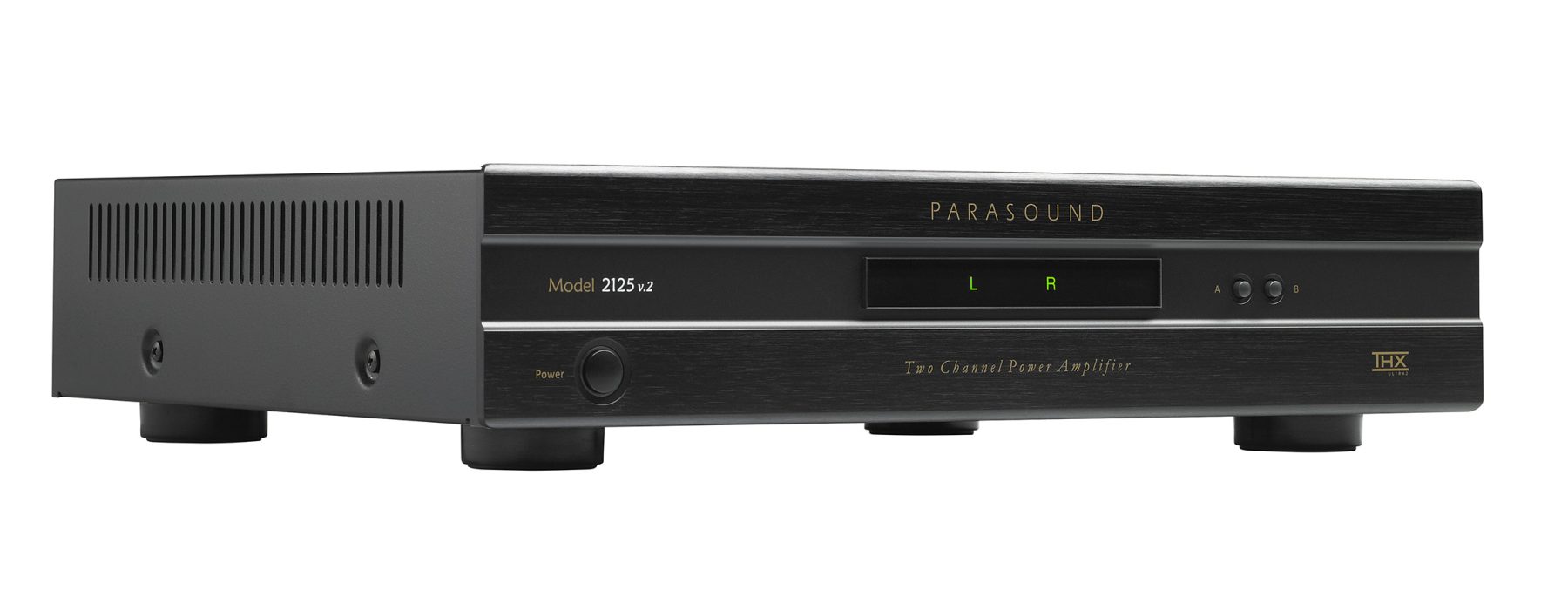

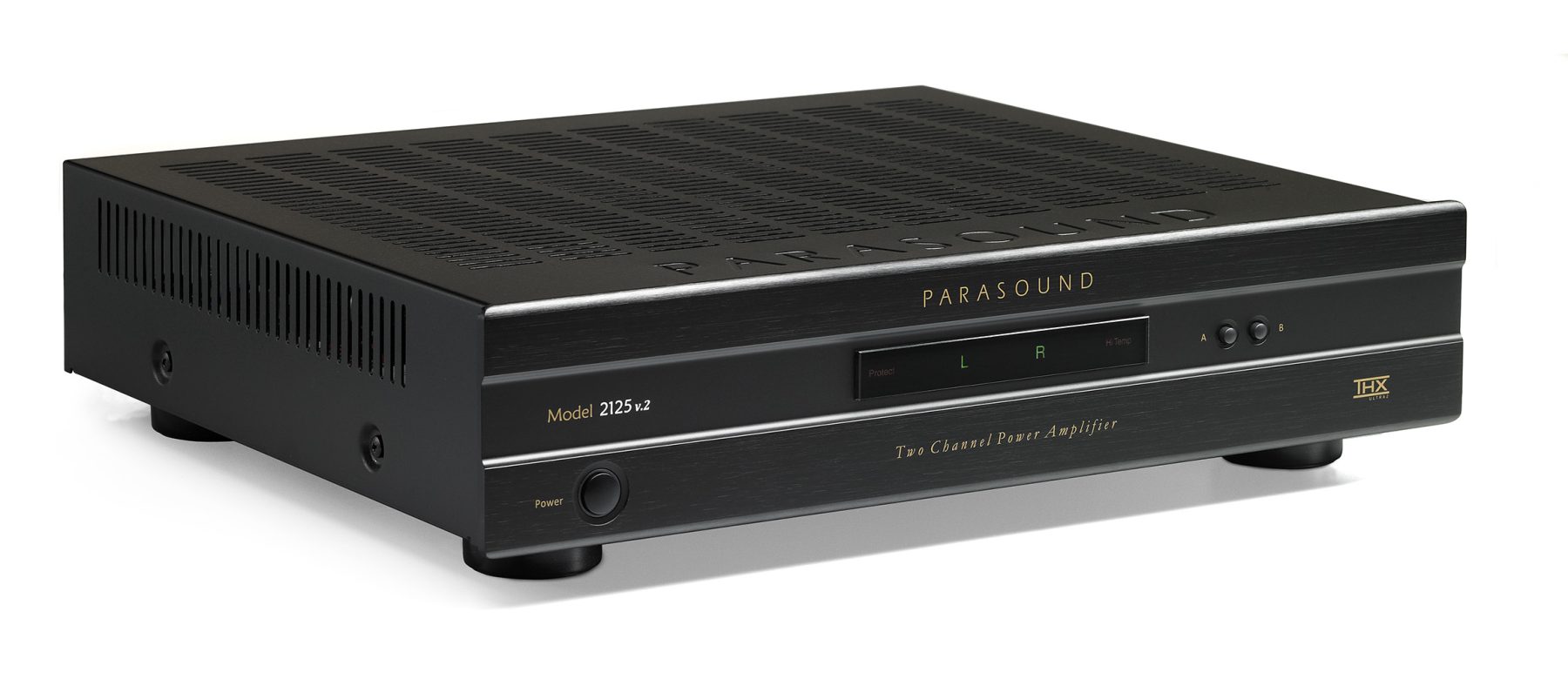

PARASOUND NEW CLASSIC POWER STEREO MODEL 2125 v.2

   • THX Ultra2 certified
• 150 watts x 2 into 8 Ω (all channels driven)
• 225 watts x 2 into 4 Ω or 2 Ω (all channels driven)
• 400 watts x 1 bridged into 8 Ω or 4 Ω
• 35 amps peak current per channel
• 2 Ohm stable operation with load selector switch

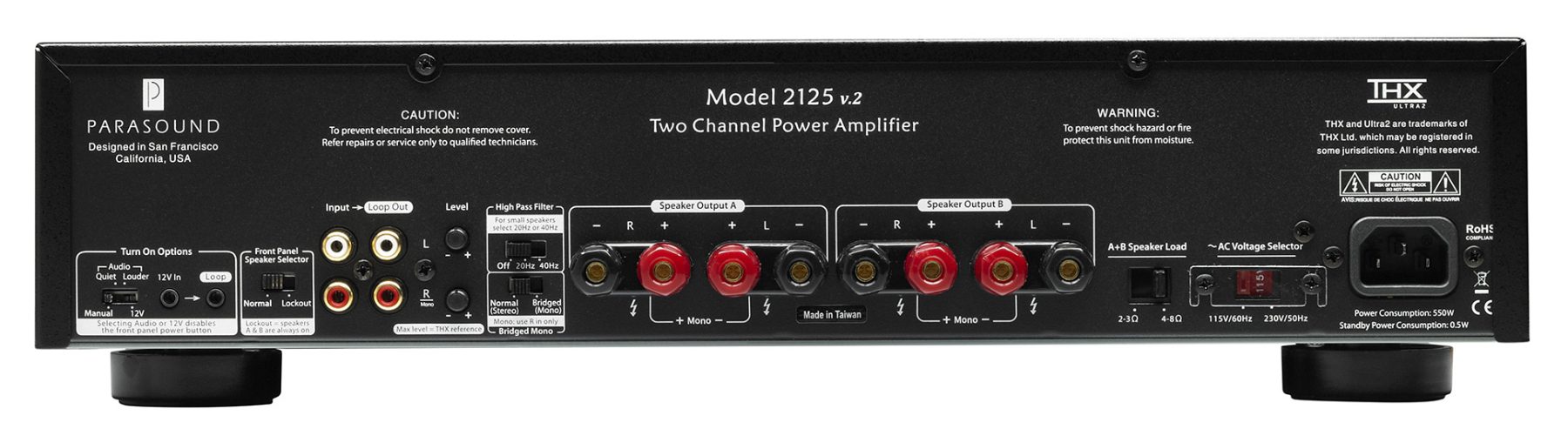

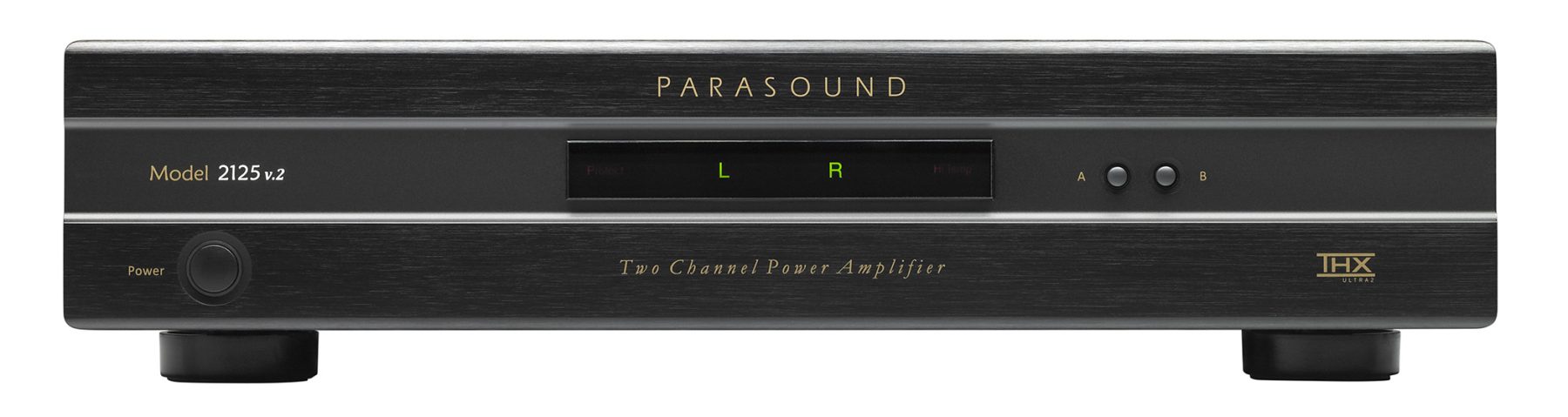

• Two pairs of speaker outputs with front panel A/B buttons
• Rear-mounted lockout switch disables front A/B buttons
• High pass filter, switchable for 20Hz or 40Hz
• Automatic on/off by DC trigger with looping output
• Automatic on/off by audio signal with 2 sensitivity settings
• Fully discrete circuitry with high current toroid transformer
• Bridging switch for stereo or mono operation
• Efficient, low heat design
• DC Servo and relay protection circuits
• Rear-mounted left and right gain controls
• Standby, channel status and high temperature indicators
• Gold-plated RCA input jacks
• Heavy duty 24k gold-plated 5-way speaker terminals
• 115/230v selector on rear panel
• 2U rack mount kit available separately (Model RMK22)

• All Channels Driven
  150 watts x 2, 8Ω
  225 watts x 2, 4Ω
  225 watts x 2, 2Ω (Load switch set to 2-3Ω)
• Bridged Mono
  400 watts x 1, 8Ω
  400 watts x 1, 4Ω (Load switch set to 2-3Ω)
• Current Capacity
  35 amps peak per channel
• Frequency Response
  20 Hz – 50 kHz, +0/-3 dB, 1 watt
  Dynamic Headroom – 1.3 dB
• Total Harmonic Distortion
  0.25% at full rated output
  0.015% at average listening levels
• IM Distortion – 0.05 %
  Transient IM Distortion – Not measurable
• S/N Ratio
  114 dB at rated output, IHF A-weighted
  106 dB at rated output, unweighted
  93 dB at 2.828 V output, IHF A-weighted
  84 dB at 2.828 V output, unweighted
• Input Impedance – 33 k Ω
• Input Sensitivity
  1 V in for 28.28 V out, THX standard
• Inter-Channel Crosstalk
  85 dB @1 kHz, 73 dB @10 kHz, 67 dB @ 20kHz
  Damping Factor – Over 150 at 20Hz
  12V Trigger Turn On – DC 9 – 12V, 15 mA
• Audio Turn On
  Quieter: 1 mV
  Louder: 6 mV
• AC Power Requirement
  110 – 120 V / 220 -240 V, 50 – 60 Hz
  0.5 watts standby
  32 watts Idle (no audio)
  550 watts full output
• Dimensions
  171/4″ Wide
  16″ Deep, with cables connected
  4.25″ High with feet, 3.5″ panel only (2U)
  (437 x 406 x 107mm, 88.2 mm panel only)
• Net Weight – 27 lbs (12.3 kg)
