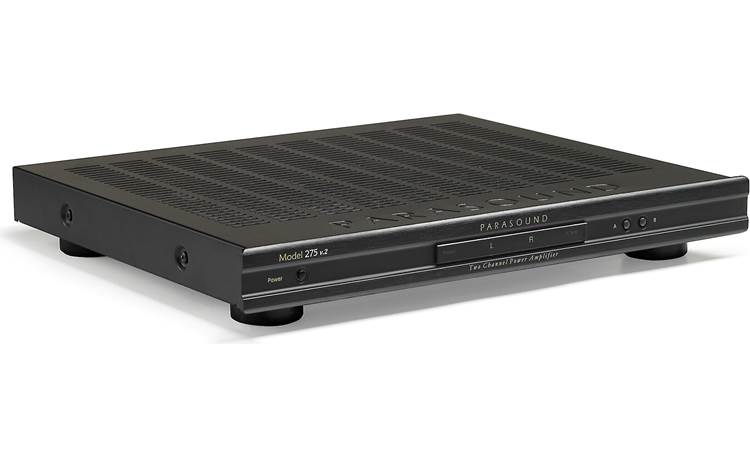

PARASOUND NEW CLASSIC POWER STEREO MODEL 275 V2 ( New Model)
90 watts x 2 into 8 O (all channels driven)
150 watts x 2 into 4 O or 2 O (all channels driven)
200 watts x 1 bridged into 8 O or 4 O
20 amps peak current per channel
2 Ohm stable operation with load selector switch
Two pairs of speaker outputs with front panel A/B buttons
Rear-mounted lockout switch disables front A/B buttons
High pass filter, switchable for 20Hz or 40Hz
Automatic on/off by DC trigger with looping output
Automatic on/off by audio signal with 2 sensitivity settings
Fully discrete circuitry with high current toroid transformer
Bridging switch for stereo or mono operation
Efficient, low heat design
DC Servo and relay protection circuits
Rear-mounted left and right gain controls
Standby, channel status and high temperature indicators
Gold-plated RCA input jacks
Heavy duty 24k gold-plated 5-way speaker terminals
115/230v selector on rear panel
Power Output – (RMS power, 20 Hz – 20 kHz)
All Channels Driven
90 watts x 2, 😯
150 watts x 2, 4O
150 watts x 2, 2O (Load switch set to 2-3O) Bridged Mono
200 watts x 1, 😯
200 watts x 1, 4O (Load switch set to 2-3O) Current Capacity
20 amps peak per channel Frequency Response
20 Hz – 50 kHz, +0/-3 dB, 1 watt Dynamic Headroom – 1.3 dB Total Harmonic Distortion
0.35% at full rated output
0.025% at average listening levels IM Distortion – 0.05 % Transient IM Distortion – Not measurable S/N Ratio
110 dB at rated output, IHF A-weighted
103 dB at rated output, unweighted
93 dB at 2.828 V output, IHF A-weighted
84 dB at 2.828 V output, unweighted Input Impedance – 33 k O Input Sensitivity
800 mV for full rated output (28dB) Inter-Channel Crosstalk
80 dB @1 kHz, 72 dB @10 kHz, 65 dB @ 20kHz Damping Factor – Over 150 at 20Hz 12V Trigger Turn On – DC 9 – 12V, 15 mA Audio Turn On
Quieter: 1 mV
Louder: 6 mV AC Power Requirement
110 – 120 V / 220 -240 V, 50 – 60 Hz
0.5 watts standby
25 watts Idle (no audio)
350 watts full output Dimensions
17-1/4″ Wide
16″ Deep, with cables connected
2-1/2″ High with feet, 1-3/4″ panel only (1U)
(437 x 406 x 63mm, 44.1 mm panel only) Net Weight – 20 lbs (9.1 kg) Rack Mount Accessory
May be Purchased Separately
RMK11
